Handheld Ultrasound KX5100V Bovine, Dairy Cow, & Rectal Insertion Arm | KeeboMed

Save $ 629.82

Sale price$ 2,869.18 Regular price$ 3,499.00

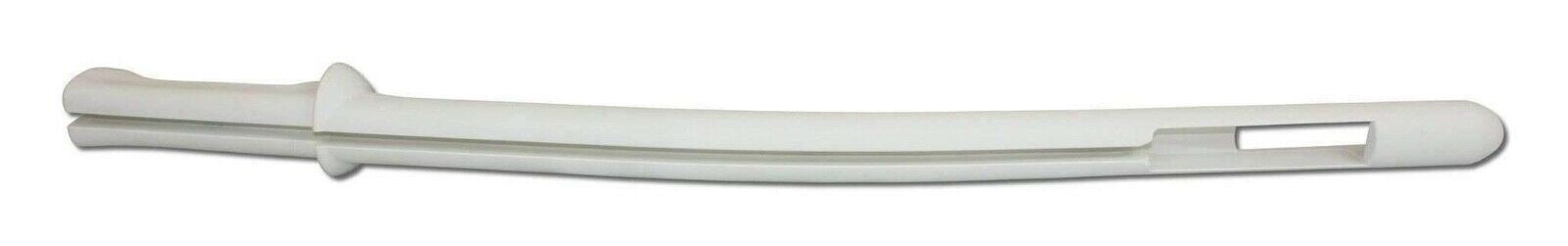

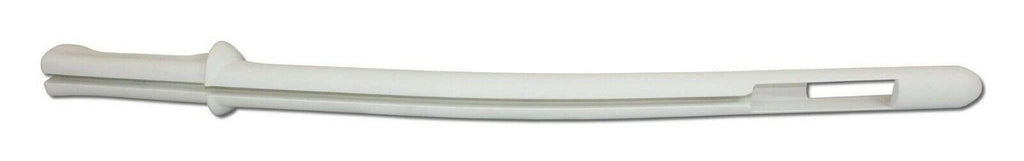

KX5100V comes with Rectal Probe, Rectal Insertion Arm, and Warranty.

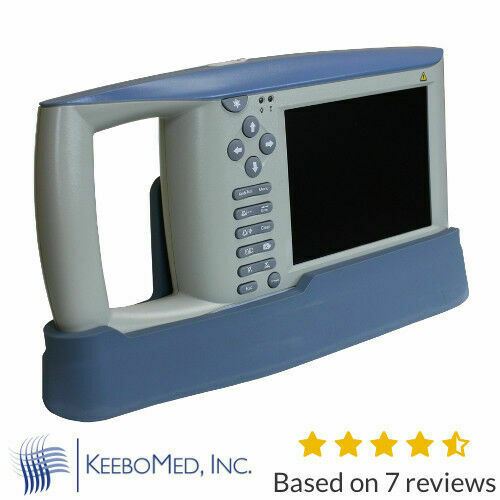

One of the most reliable palm ultrasounds for large animals. A handheld diagnostic animal ultrasound scanner.  KX5100 Vet is a small ultrasound machine for pregnancy scanning of animals. Suitable for large animals (bovine and equine), farm animals (goats, sheep, llamas) and pets small animal (cats and dogs) depending on the probe.


  • Full digital palm ultrasound scanner for veterinary
  • Digital Ultrasound
  • Only 3 Lbs - easy to carry
  • Comes with two batteries


  • Good image quality
  • Variety of Electronic Probes: Convex, Linear, Micro-convex
  • Real-time and harmonic imaging
  • Keyboard: Ergonomic keyboard
  • Grayscale: 256 levels
  • Display modes: B, B/B, B/M, M, or 4B
  • Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s
  • Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.6, ×2.0, ×2.4 and ×3.0
  • Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
  • CINE loop: 256-frame
  • Zoom: Intelligent local zoom in real-time and frozen mode
  • Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station


  • Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, image freeze/unfreeze, gamma correction, edge enhancement for image after-processing, gray transformation, gray rejection etc. Frame correlation function, Adjustment, and display of near field, far field, total gain, and dynamic range, Pre-processing: IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection.
  • Measurements: B Mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc. M mode: distance, time, velocity, heart rate etc. General veterinary software packages for the abdomen, OB/GYN, small parts, urology, cardiology etc. Veterinary obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
  • Report: Veterinary obstetric report
  • Documentation: Full screen documentation, hospital name, date/time
  • Power Supply: AC 100-240V~, 50-60Hz
  • Power consumption:  40VA
  • Others: 8 kinds pseudo-color, energy-saving, PAL-NTSC switchable
  • Extensive veterinary applications: abdominal, urology, GYN, OB, small parts, pediatric, cardiology, biopsy

Standard Parts

  • Main unit
  • 6.4 high-resolution non-interlaced LCD display
  • 1 probe connector
  • 256-frame CINE loop
  • 100-frame image storage
  • Veterinary measurement & calculation software packages
  • 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
  • 4 veterinary body marks
  • Packaging carton & metal case
  • Inspection CE, TUV, ISO
  • Charger
  • Full digital palm ultrasound scanner for veterinary

Optional Probes

  • 3.5MHz convex abdomen probe (veterinary abdomen, GYN, OB, Urology)
  • 4.0MHz convex rectal probe (for veterinary endorectal)
  • 4.0MHz convex rectal probe with handle (for veterinary endorectal)
  • 5.0MHz micro-convex cardio probe (for veterinary cardio)
  • 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
  • 6.5MHz linear veterinary rectal probe with handle (for veterinary endorectal)
  • 6.5MHz convex transvaginal probe (for veterinary endovaginal)
  • 7.5MHz high-frequency linear probe (for veterinary small parts, orthopedics, breast, musculoskeletal)

Optional Parts

  • Biopsy needle-guided brackets
  • Ultrasound working station trolley
  • USB software with connection cable
  • Ultrasound goggles
  • A rechargeable power supply for your vehicle
  • Thermal printer (brand: Mitsubishi, model: P93W-S)

KeeboMed, Inc. Mount Prospect, IL  USA

"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health.

International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional charges might be.
