Chison Q5-4D Chison Q5-4D Chison Q5-4D

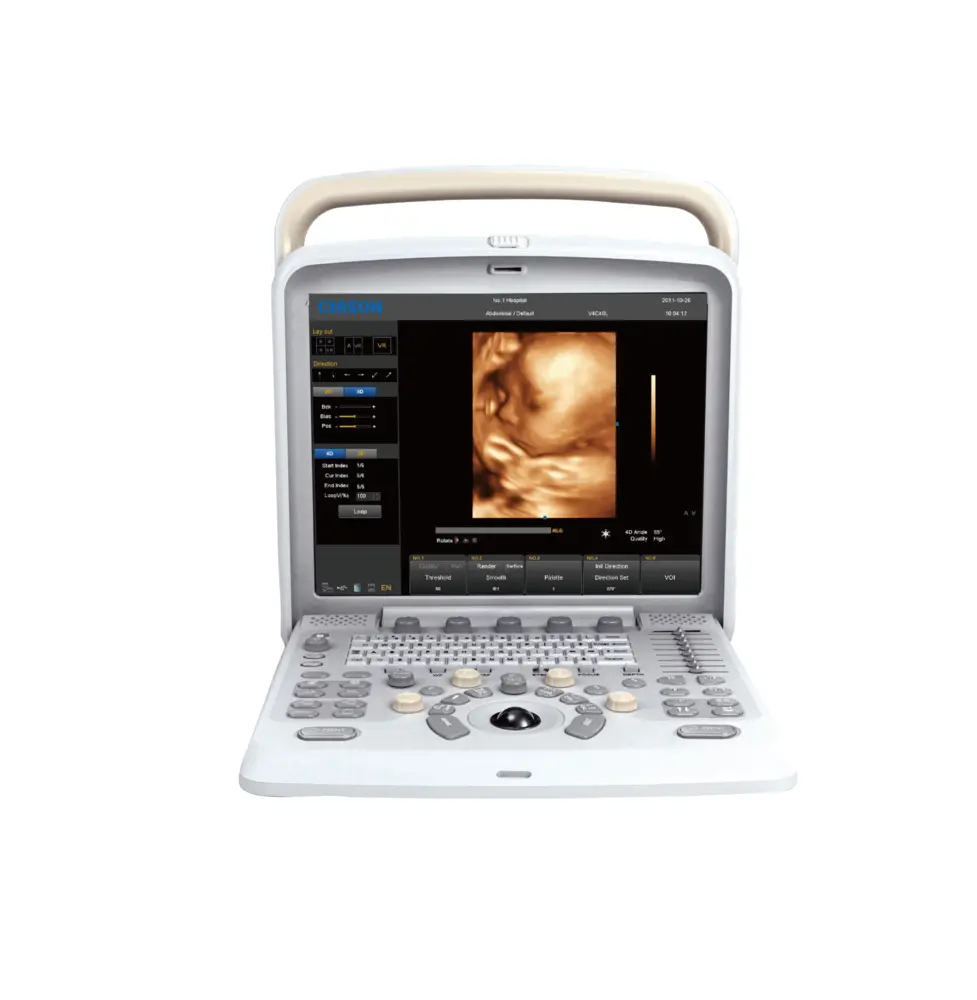

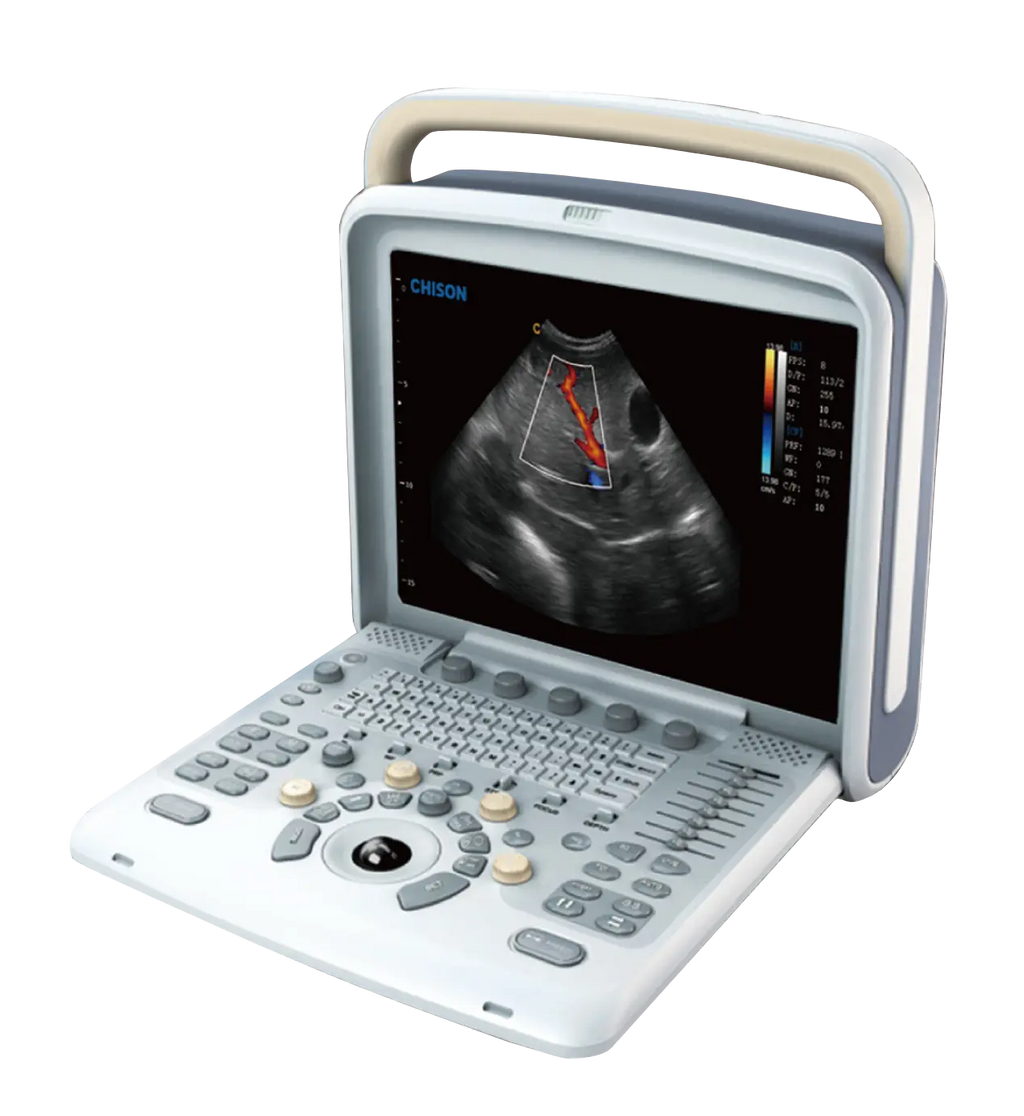

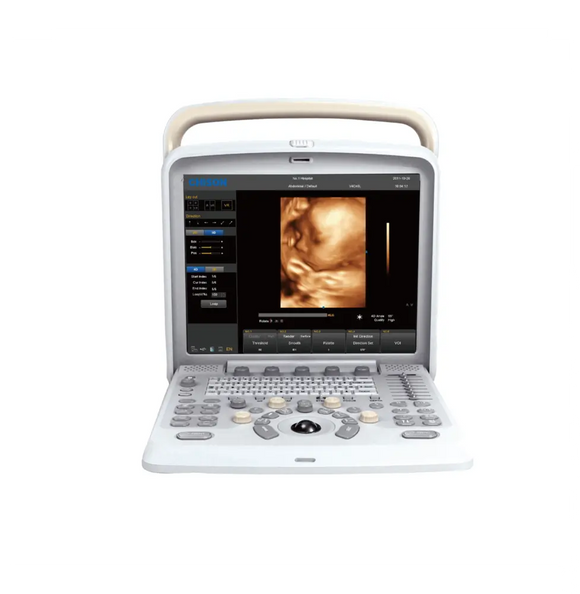

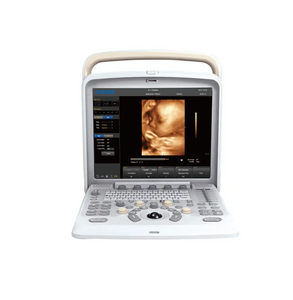

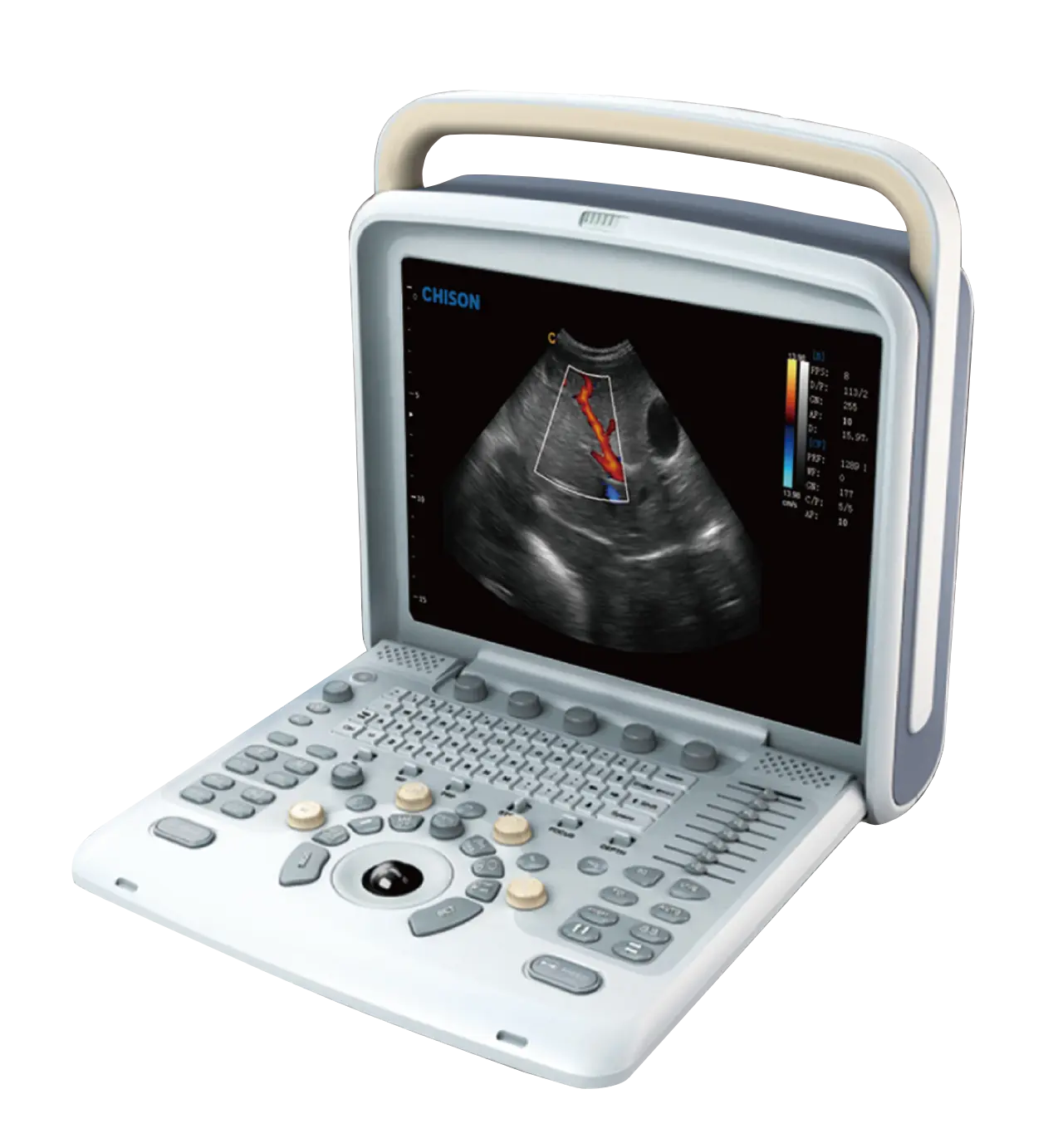

Chison Q5-4D

Chison Q5 is considered to be one of the best ultrasound machines provided by Chison brand. Q5 is a reliable, efficient and quality product just like other products of the company. It offers excellent image quality and comes with amazing technology features like speckle reduction, spacial compounding and automatic image optimization. This ultrasound machine upgrades the work flow in clinics and hospitals by streamlining diagnosis process.

Chison Q5 covers all the major clinical applications like, gynecology, pediatrics, obstetrics, abdominal, vascular, small parts, urology and musculoskeletal. It is extremely user friendly product as it comes with 15” LCD screen, two probe connectors, two USB ports, hard disk etc. Q5 can conduct one-button direct print, direct burning and has amazing transfer capabilities. It also features full DICOM and can transfer scanned images directly to an interpretation station.

KeeboMed Inc. has Chison Q5 ultrasound machines available for sale at highly discounted rates. Call us to place an order, if you think that the system is going to suffice your requirements.

Chison Q5

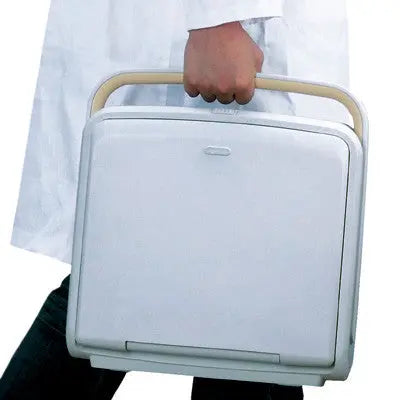

The Chison Q5 is a portable shared service system able to do all applications at a price far below the competition.  It also has the unique option of scanning in real-time 4D.

Imaging Modes

  • B-Mode
  • M-Mode
  • THI Mode
  • CPA (Color Power Angio) / Directional PD
  • PW Doppler
  • CFM Mode
  • Duplex
  • Triplex
  • Real-time 4D (Option)
  • Chroma B/PW
  • Quad/Dual Display
  • Duplex Mode

Q5 Features

  • 15″ LCD monitor
  • 2 probe ports
  • HPRF [High Pulse Repetition Frequency]
  • OB/GYN, Vascular/Small Parts, Pediatrics, Urology, & Musculoskeletal
  • THI [Tissue Harmonic Imaging]
  • Trapezoid imaging & Panoramic Imaging
  • SRA [Speckle Reduction Algorithm]
  • MCI [Multiple Compound Imaging]
  • 160 GB hard drive
  • 2 USB ports

Probes / Transducers

  • Convex probe D3C60 [ 2 – 6 MHz ]
  • Linear probe D7L40L [ 4 – 13 MHz ]
  • Micro Convex probe D5C20L [3 – 9 MHz]
  • Transvaginal probe D6C12L [ 4 – 10 MHz ]
  • Cardiac sector probe D3C20L [ 2 – 4 MHz ]
  • Pediatric probe [5 MHz ]
  • 4D volume probe [4 MHz]

Applications

OB / GYN
Vascular
General imaging
MSK
Urology
Small parts
Abdominal
Pediatric

Dimensions

12″ high
16″ wide
4″ deep

Q5 Options

  • 4D package:  4.0MHz 4D volume probe, 4D software, and 4D hardware module.
  • Video Printer
  • PC Printer
  • DICOM 3.0
  • i-image:  image optimization software
  • Biopsy kit
  • Foot-switch
